Category 6 S/FTP 4 Pair Elevator Travelling Cable

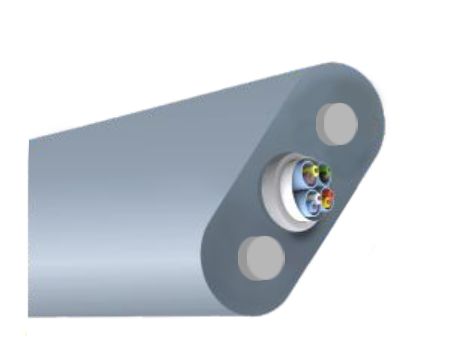

Norden flat elevator cable is ideal for connecting IP cameras inside elevators. The elevator traveling Cat6 cable exceeds Category 6/Class E specs
Overview Specifications Ordering Information
Overview
Norden flat elevator cable is ideal for connecting IP cameras inside elevators. The elevator traveling Cat6 cable exceeds Category 6/Class E specsSpecifications
PRODUCT CLASSIFICATION
|
Product Sequence |
Premium |
|
Product Type |
Twisted Pair Cable |
MATERIAL CONSTRUCTION & DESIGN
|
Conductor Material |
Tinned Copper |
|
Conductor Size |
0.40mm, 26 AWG |
|
Conductor Construction |
Solid |
|
Insulation Material |
PVC |
|
Individual Pair Shield: |
Al/PETP foil |
|
Support members: |
None |
|
Overall Shield: |
Tinned Cu braid shield |
|
Outer Jacket: |
PVC (Elastic material for elevator) |
|
Overall Dimension |
17.0±1.5mmx8.7±0.5mm |
|
Galvanized Steel Rope Dia. |
2.0mm (2 Nos.) |
|
Total Number of Pairs |
4 |
|
Outer Jacket Colour |
Grey |
ELECTRICAL & MECHANICAL CHARACTERISTICS
|
Free Suspension length |
48 meters max. |
|
Travel speed |
4 m/s max. |
|
Lifting Height |
150m |
|
Operating Temp. |
-15°C to +75°C |
|
Tensile Strength |
≥ 10.0N/mm2 |
|
Sheath Elongation |
≥ 300% |
|
Rated Voltage |
100V |
Ordering Information
| Part Number | Description |
|
103-1000T504X |
Category 6 S/FTP 4 Pair Travelling Elevator Cable |
