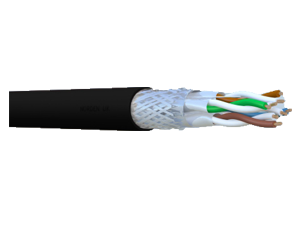

Category 6 S/Ftp 4 Pair Double Jacket External Cable
Norden Category 6 S/FTP 4 pair Double jacket cables exceed Category 6 / Class E specification and used in external application. It is tested to 250 MHz frequency range and designed to support Gigabit 1000Base-T and 1000Base-Tx applications upto 100m. Extremely high pair-balance providing excellent EMC (Electro Magnetic Compatibility), minimizing...
Overview Specifications Ordering Information
Overview
Norden Category 6 S/FTP 4 pair Double jacket cables exceed Category 6 / Class E specification and used in external application. It is tested to 250 MHz frequency range and designed to support Gigabit 1000Base-T and 1000Base-Tx applications upto 100m. Extremely high pair-balance providing excellent EMC (Electro Magnetic Compatibility), minimizing...Specifications
 |
COMPLIANCEIEEE 802.af,IEEE 802.3at for PoE applications |
PRODUCT CLASSIFICATION
| Product Sequence | Premium |
| Product Type | Twisted Pair Cable |
MATERIAL CONSTRUCTION & DESIGN
| Conductor Material | Solid Bare Copper |
| Conductor Size | 0.56 mm, 23 AWG |
| Conductor Construction | Solid |
| Insulation Material | Skin-foam-skin PE |
| Insulation Diameter | 1.33 mm |
| Conductor Unit Identification | Solid/Stripe |
| Rip Cord | Yes |
| Drain wire | N/A |
| Colour Code | Per TIA/EIA 568-B |
| Ind. Shield Material | Aluminium Foil |
| Ind. Shield Design | 100 % Coverage |
| Conductor Unit lay-Up | Pairs |
| Overall Shield Design | Braid |
| Overall Shield Material | Tinned Copper, 0.10 mm |
| Braid Coverage | 45 % nom. |
| Total Number of Wires | 8 |
| Inner Jacket | LSZH (Low Smoke Zero Halogen) |
| Inner Jacket Thickness | 0.55±0.05 mm |
| Outer Jacket | LDPE |
| Outer Jacket Thickness & Ex. Diameter | 0.60±0.05 mm, 8.8±0.5 mm |
| Outer Jacket Colour | Per Requirement |
| Marking | Per Requirement |
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Frequency Range | 1 - 250 MHz |
| Impedance | 100 Ω ±15 |
| Coupling Attenuation | 85 dB min @ 30-100 MHz 85-20 Log (f/100) @100-250 MHz |
| DC Resistance | 9.38 Ω/100m nom. |
| Max. Resistance Unbalance | 4 % |
| Capacitance | 5.6 nF/100m max. |
| Capacitance Unbalance | 3.3 pF/m max. |
| Propagation Delay Skew | 35 ns/100m max. |
| Velocity of Propagation | 69 % |
| Dielectric Strength | 1 KV/minute |
| Min. Insulation Resistance | 5 GΩ•km |
| Max.Tensile Strength - Short Term | 110 N |
| Transfer Impedance | 1000 mΩ/m max @ 100 MHz |
| Min. Bend Radius | 58mm |
| Operating Temperature Range | -10°C +60°C |
TRANSMISSION PERFORMANCE
Cat. 6 screened Pair Horizontal Cables*
| Freq. MHz |
Attenuation (20°C) ≤dB |
NEXT ≥dB |
PHASE DELAY ≤dB |
PSNEXT ≥dB |
RL ≥dB |
ELFEXT ≥dB |
PSELFEXT ≥dB |
| 1 | - | 74.3 | 570.00 | 72.3 | 20.0 | 67.8 | 64.8 |
| 4 | 3.78 | 65.3 | 552.00 | 63.3 | 23.0 | 55.8 | 52.8 |
| 8 | 5.32 | 60.8 | 546.73 | 58.8 | 24.5 | 49.7 | 46.7 |
| 10 | 5.95 | 59.3 | 545.38 | 57.3 | 25.0 | 47.8 | 44.8 |
| 16 | 7.55 | 56.2 | 543.00 | 54.2 | 25.0 | 43.7 | 40.7 |
| 20 | 8.47 | 54.8 | 542.05 | 52.8 | 25.0 | 41.8 | 38.8 |
| 25 | 9.51 | 53.3 | 541.20 | 51.3 | 24.3 | 39.8 | 36.8 |
| 31.25 | 10.67 | 51.9 | 540.44 | 49.9 | 23.6 | 37.9 | 34.9 |
| 62.5 | 15.38 | 47.7 | 538.55 | 45.4 | 21.5 | 31.9 | 28.9 |
| 100 | 19.80 | 44.3 | 537.60 | 42.3 | 20.1 | 27.8 | 24.8 |
| 200 | 28.98 | 39.8 | 536.54 | 37.8 | 18.0 | 21.8 | 18.8 |
| 250 | 32.85 | 38.3 | 536.27 | 36.3 | 17.3 | 19.8 | 16.8 |
*Supplied cables meets Cat. 6 min. transmission requirements as per IEC 61156-5 Ed. 2
Ordering Information
| Part Number | Description | Standard Length |
| 113-20223504X | Category 6 S/FTP 4 Pair Double Jacket External Cable | 305 mtr |
X: BK(Black), BL(Blue), GN(Green), GY(Gray), RD(Red), WH(White), YL(Yellow)
